Step Screen:

The Step screen system is widely accepted and successful due to its function, the easy to understand operation method, easy servicing, its ability to handle very large & fine screening volumes & its operation reliability. Step screens are ideal for textile & paper industry.


  • Industrial effluent treatment plant
  • Textile effluent treatment plant
  • Paper mill effluent treatment plant


  • Simple design
  • Resist corrosion
  • Minimum maintenance required
  • Easy to install without any major modification in channel
  • High separation efficiency
  • Smooth running
  • Speed controller
  • Level sensor

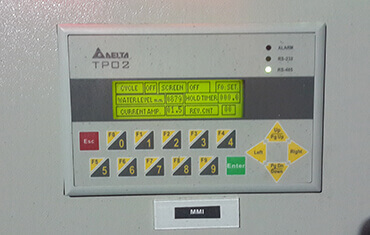

  • PLC based operation

    Technical specification:

  • Spacing: 2 mm to 20 mm, larger on request
  • Channel width 500 mm to 2000 mm
  • Channel depth 500 mm to 3000 mm, larger on request
  • Discharge: above channel
  • MOC: SS 304, SS 316, SS 316L, Other grades on request
  • Installation angle: 45 to 50 degree/li>
